A state variable is one of the set of variables that are used to describe the mathematical "state" of a dynamical system. Intuitively, the state of a system describes enough about the system to determine its future behaviour. Models that consist of coupled first-order differential equations are said to be in state-variable form.[1]

Examples[edit]

Control systems engineering[edit]

In control engineering and other areas of science and engineering, state variables are used to represent the states of a general system. The state variables can be used to describe the state space of the system. The equations relating the current state and output of a system to its current input and past states are called the state equations. The state equations for a linear time invariant system can be expressed using coefficient matrices:

A\in RN*N, \quad B\in RN*L, \quad C\in RM*N, \quad D\in RM*L,

where N, L and M are the dimensions of the vectors describing the state, input and output, respectively.

Discrete-time systems[edit]

The state variable representing the current state of a discrete-time system (i.e. digital system) is x[n]\,, where n is the discrete point at which the system is being evaluated. The discrete-time state equations are

 x[n+1] = Ax[n] + Bu[n]\,\! , which describes the next state of the system (x[n+1]) with respect to current state and inputs u[n] of the system.
 y[n]   = Cx[n] + Du[n]\,\! , which describes the output y[n] with respect to current states and inputs u[n] to the system.

Continuous time systems[edit]

The state variable representing the current state of a continuous-time system (i.e. analog system) is x(t)\,, and the continuous time state equations are

 \frac{dx(t)}{dt} \ = Ax(t) + Bu(t)\,\! , which describes the next state of the system  \frac{dx(t)}{dt} \,\! with respect to current state x(t) and inputs u(t) of the system.
 y(t)   = Cx(t) + Du(t)\,\! , which describes the output y(t) with respect to current states x(t) and inputs u(t) to the system.

See also[edit]

References[edit]

  1. ^ William J. Palm III (2010). System Dynamics (2nd ed.). p. 225.

Original courtesy of Wikipedia: http://en.wikipedia.org/wiki/State_variable — Please support Wikipedia.
A portion of the proceeds from advertising on Digplanet goes to supporting Wikipedia.
412415 videos foundNext >

Lecture - 45 State-Variable Methods (1)

Lecture Series on Networks and Systems by Prof.V.G.K.Murti, Department of Electrical Engineering, IIT Madras. For More details on NPTEL visit http://nptel.ii...

State Space Representation ( Dynamic Systems ) | Mechanical Engineering

State Space Representation Dynamic Systems.

Lecture 48 State Variable Methods (4)

Lecture Series on Networks and Systems by Prof.V.G.K.Murti, Department of Electrical Engineering, IIT Madras. For More details on NPTEL visit http://nptel.ii...

Proof: S (or Entropy) is a valid state variable

More free lessons at: http://www.khanacademy.org/video?v=sPz5RrFus1Q Prroof that S (or entropy) is a valid state variable.

Lecture - 46 State-Variable Methods(2)

Lecture Series on Networks and Systems by Prof.V.G.K.Murti, Department of Electrical Engineering, IIT Madras. For More details on NPTEL visit http://nptel.ii...

Lec-47 State-Variable Equations

Lecture Series on Control Engineering by Prof. S.D. Agashe, Department of Electrical Engineering,IIT Bombay. For more details on NPTEL visit http://nptel.iit...

Lecture 47 State Variable Methods (3)

Lecture Series on Networks and Systems by Prof.V.G.K.Murti, Department of Electrical Engineering, IIT Madras. For More details on NPTEL visit http://nptel.ii...

Tasker 101 Tutorials: Lesson 16b - Screen State Variable, SIMPLE Lock Screen, Addnl Lock Options

In this lesson we build on Lesson 16a, adding the option to have the screen turn back on IF it was originally on when you connected to Wifi or Bluetooth and ...

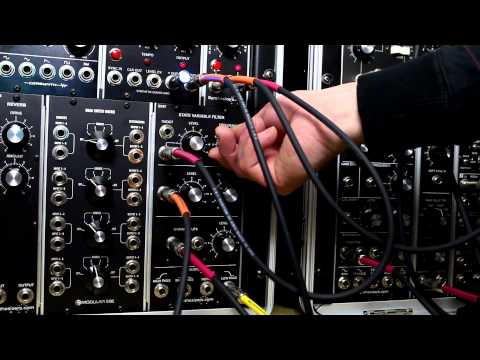

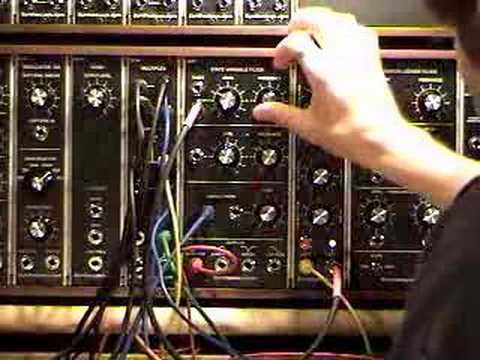

Synthesizers.com Q107 State Variable Filter

Here is a brief demonstration of the capabilities and sound of the Synthesizers.com state variable filter.

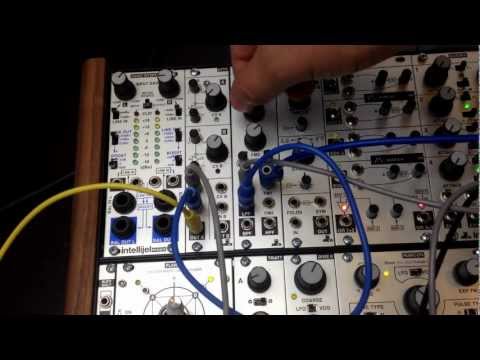

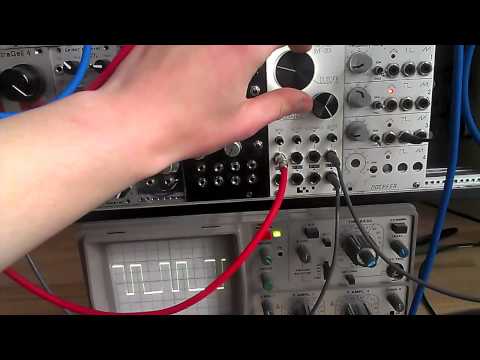

SVF-201 Analogue State Variable Filter Module
