Applied sciences






















Manufactured by Roland
Dates 1998–2002
Price £782 UK, $1299 US
Technical specifications
Polyphony 64-note
Timbrality 8-part (Including a separate rhythm channel)
Oscillator Yes
Synthesis type Sample-based synthesis (rompler)
Filter Yes
Memory 512 preset sounds, 26 drum kits
Effects reverb/delay, chorus/flanger
Keyboard No
External control MIDI in/out

The Roland MC-505 is a groovebox conceived in 1998 as a combination of a MIDI controller, a music sequencer and a drum machine, and also has some of the prime features of synthesizers: arpeggiator, oscillators, voltage-controlled filter, control of attack, decay, sustain and release. It was released as the successor to the Roland MC-303 and is a compact version of the Roland JX-305 Groovesynth without the full set of 61 keys. It is also the predecessor to the Roland D2, Roland MC-307, Roland MC-909 and the Roland MC-808.


The key features of the MC-505 are:

  • 64 voice polyphonic digital subtractive synthesis engine (derived from the Roland JV-2080) with 251 different oscillator, acoustic and drum sample waveforms
  • 512 built-in preset sounds, 256 user sounds & 26 rhythm sets (includes the Roland CR-78, TR-808, TR-606, TR-909, TR-707 and R-8)
  • 8-track MIDI sequencer + Mute Ctrl Track
  • Recording length of up to 32 bars per pattern
  • 714 preset sequencer patterns, 200 user patterns, 50 user songs
  • 3 multi-effect units: Reverb, Delay and 24 different EFXs
  • Infrared D-Beam controller for hands-free sound modulation
  • MEGAMix function for intuitive realtime mixing of beats and patterns
  • 5 volt Smartmedia card slot for doubling user patch and pattern memory


The Roland MC-505 has no sampler. The size of the LCD screen makes it difficult to read each feature setting, and over time the LCD screen would lose pixels (which in some cases renders the screen unreadable; this is called "display bug" by some users). This issue is due to the heat on the LCD screen-PCB board, the lamination between the crystal and the PCB is opening/splitting up from the little heat inside the Roland MC-505 from prolonged use. Roland has fixed this by updating the LCD screen component.

Notable Artists[edit]


External links[edit]

MC-505 PDF Manual Links:

Other Links:

Original courtesy of Wikipedia: http://en.wikipedia.org/wiki/Roland_MC-505 — Please support Wikipedia.
This page uses Creative Commons Licensed content from Wikipedia. A portion of the proceeds from advertising on Digplanet goes to supporting Wikipedia.
27141 videos foundNext >

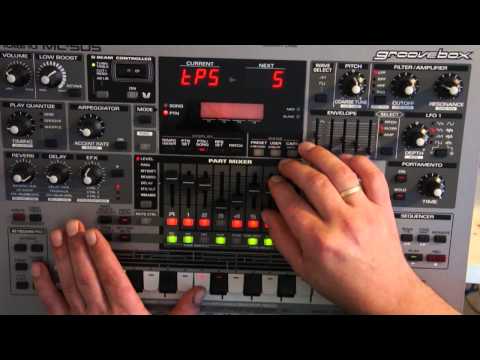

Roland MC-505 "first Steps" by moonbooter

visit me at: www.moonbooter.com www.mellowjet.com I filmed the first song I composed on the Roland MC-505 about two years ago. So I called it "first Steps". It´s not perfect but it´s so...

Roland MC-505 Deep\Dub Techno

Time to upload some new patterns with Roland.

Roland MC- 505 Groovebox walk through part 1

Roland MC- 505 Groovebox walk through part 1.

Roland MC-505 Oldschool groovebox sounds, live performance

mc505 groovebox roland sequencer.

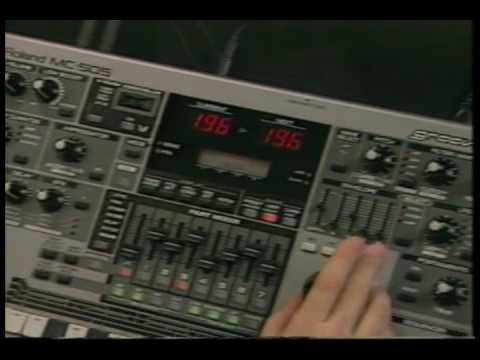

Roland MC 505 Promo Video (1998)
