1926 ad for the company's gasoline-driven locomotives.
Plymouth locomotive at the Linden Depot Museum, Linden, Indiana.

Plymouth Locomotive Works was a US builder of small railroad locomotives. All Plymouth locomotives were built in a plant in Plymouth, Ohio until 1997 when the company was purchased by Ohio Locomotive Crane and production moved to Bucyrus, Ohio in 1999. Production of locomotives has now ceased, and rights to the spare parts business have been sold to Williams Distribution.[1]

History[edit]

Plymouth locomotives were first built in 1910 by the J.D. Fate Company, which became Fate-Root-Heath in 1919.[2] The J.D. Fate patent application filed in 1917 shows the engine driving a clutch and a continuously variable transmission that allowed varying the speed through zero to reverse the locomotive. The output of the transmission drove a transverse jackshaft through a chain drive, with additional drive chains to the two driving axles.[3] All early Plymouth locomotives used this drive scheme.[4] The Fate-Root-Heath patent application filed in 1925 shows a far-more conventional 4-speed transmission and reverse gears driving the jackshaft and final chain drive to the 2 driving axles.[5]

All early Plymouth locomotives were powered by gasoline-burning internal combustion engines, but in 1927 the first diesel was produced. The company changed its name to match its locomotive plant in the late 1950s, becoming Plymouth Locomotive Works, changing again to Plymouth Industries in the late 1970s.

Production[edit]

In 1937, Plymouth constructed prototype short-line railroad locomotives as ran on butane and propane, one of each. Plymouth was one of the world's most prolific builders of small industrial locomotives, with over 7,500 constructed of which 1,700 are believed to still be in active use, some over 50 years old. Almost all Plymouth locomotives were under 25 tons. Some of the first gas burning locomotives used Chrysler engines. Plymouth produced locomotives in most rail gauges, mostly with mechanical torque converter transmissions.

See also[edit]

References[edit]

  1. ^ http://www.wwwilliams.com/distribution_plymouth.cfm
  2. ^ http://www.northeast.railfan.net/diesel81.html
  3. ^ Floyd B. Carter, Locomotive, U.S. Patent 1,283,665, Granted Nov. 5, 1918.
  4. ^ Chas. A. Trask, Tractor Friction Transmissions, Journal of the Society of Automotive Engineers, Vol. II, No. 6 (June 1918); page 440. Page 444 discusses the Plymouth locomotive, with a drawing and photograph on page 445.
  5. ^ Floyd B. Carter, Drive for Industrial Locomotive, U.S. Patent 1,660,475, granted Feb. 28, 1928.

Original courtesy of Wikipedia: http://en.wikipedia.org/wiki/Plymouth_Locomotive_Works — Please support Wikipedia.
This page uses Creative Commons Licensed content from Wikipedia. A portion of the proceeds from advertising on Digplanet goes to supporting Wikipedia.
12699 videos foundNext >

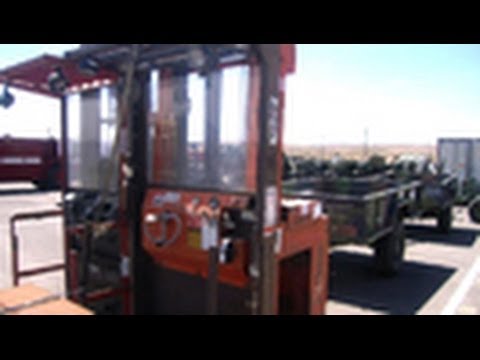

Plymouth Locomotive Works CW-HOP Material Handler on GovLiquidation.com

http://www.GovLiquidation.com - This Plymouth Locomotive Works CW-HOP Material Handler has been sold. It went for 95% off the original retail value! This Han...

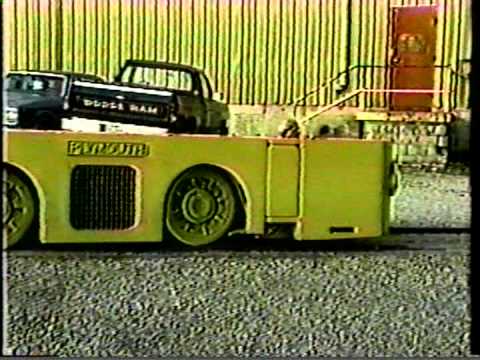

PLYMOUTH LOCOMOTIVE MODEL DMDP MINE LOCOMOTIVE

The following is a Plymouth Locomotive International promotional video of the Model DMDP mining locomotive. It shows demonstration runs and unique features o...

El Dorado Western Railway Plymouth Locomotive # 1

Brett Soto, El Dorado Western Engineer trainee, heads to Hagen's Crossing on the first run day for the 1952 Plymouth JDT 18. Number 1 is the first Locomotive...

Little Plymouth Engine Moving a Big Shay Locomotive

In 2008 I visited the Hesston Steam Museum in La Porte Indiana . This is a Video of the Little Narrow Gauge Plymouth Diesel Engine pulling a Shay Locomotive ...

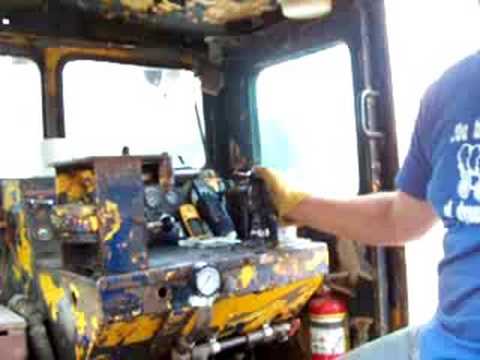

Running the Plymouth Locomotive- Cab view
