Model-based definition (MBD) is the practice of using 3D models (such as solid models, 3D PMI and associated metadata) within 3D CAD software to define (provide specifications for) individual components and product assemblies. The types of information included are geometric dimensioning and tolerancing (GD&T), component level materials, assembly level bills of materials, engineering configurations, design intent, etc. By contrast, other methodologies have historically required accompanying use of 2D engineering drawings to provide such details. The general category of digital product definition (DPD) can be either synonymous or hypernymous with model-based definition; it comprises all product definition that is digital, which usually includes a 3D model (and thus MBD).

Use of the 3D digital data set[edit]

Modern 3D CAD applications allow for the insertion of engineering information such as dimensions, GD&T, notes and other product details within the 3D digital data set for components and assemblies. MBD uses such capabilities to establish the 3D digital data set as the source of these specifications and design authority for the product. The 3D digital data set may contain enough information to manufacture and inspect product without the need for engineering drawings. Engineering drawings have traditionally contained such information.

In many instances, use of some information from 3D digital data set (e.g., the solid model) allows for rapid prototyping of product via various processes, such as 3D printing. A manufacturer may be able to feed 3D digital data directly to manufacturing devices such as CNC machines to manufacture final product.

Standardization[edit]

In 2003, ASME published the ASME Y14.41-2003 Digital Product Definition Data Practices, which was revised in 2012 as ASME Y14.41-2012. The standard provides for the use of many MBD aspects, such as GD&T display and other annotation behaviors within the solid model. ISO-16792:2006 standardizes MBD within the ISO standards, sharing many similarities with the ASME standard. Other standards, such as ISO 1101:2004 and of AS9100 also make use of MBD.

In 2013, the United States Department of Defense released MIL-STD-31000 Revision A to codify the use of MBD as a requirement for technical data packages (TDP).

See also[edit]

References[edit]

External links[edit]


Original courtesy of Wikipedia: http://en.wikipedia.org/wiki/Model-based_definition — Please support Wikipedia.
This page uses Creative Commons Licensed content from Wikipedia. A portion of the proceeds from advertising on Digplanet goes to supporting Wikipedia.
1000000 videos foundNext >

Model Based Definition - MBE

Paul Muang, MBE Program Leader, Army Research Laboratory discusses Model Based Definition in MBE and the reuse of model based definition data to increase Army efficiency and reduce lifecycle...

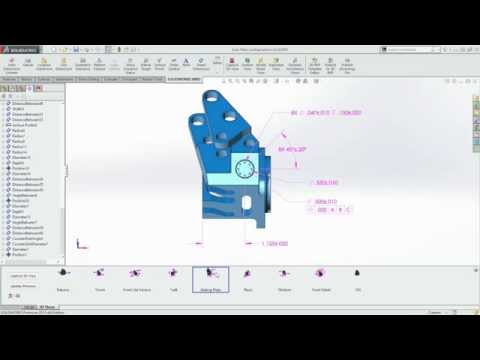

SOLIDWORKS 2015 - Model Based Definition

Innova Systems is an authorised Value Added Reseller for SolidWorks 3D design software. Call us on 01223 200690. http://www.innova-systems.co.uk.

CATIA 3D Master for Model Based Definition

More information at: http://www.3ds.com/products-services/catia/capabilities/mechanical-engineering/3d-master/ Do you use 3D, but your programs still suffer from errors and delays? Discover...

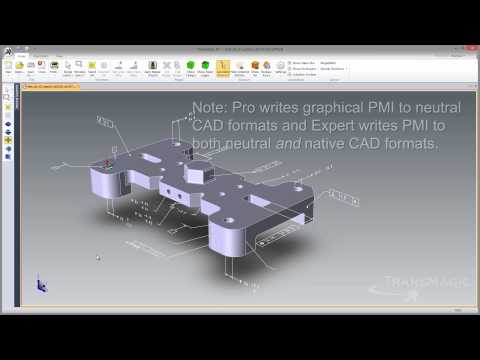

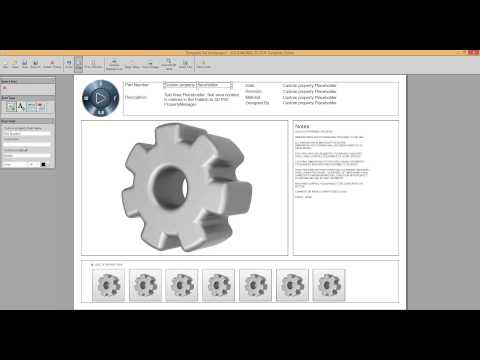

CAD Model Based Definition with TransMagic

CAD Model Based Definition (MBD) allows acquisition of vital design information from the model itself. TransMagic can read and write Product and Manufacturing Information (PMI) to give you...

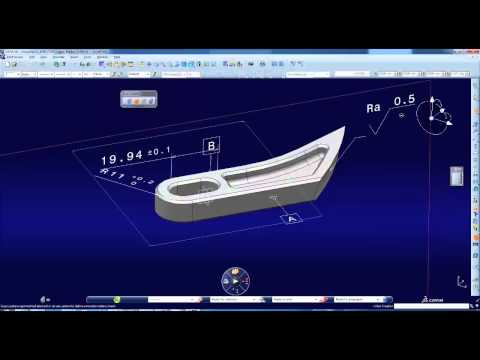

CATIA | Mechanical Engineering | Model-Based Definition Series - Episode1

The purpose of this serial is to show how CATIA 3D Master fully supports the Model Based Definition approach (MBD). Let us start with the Preliminary (or Conceptual) Design Phase in this first...

SOLIDWORKS Model Based Definition First Look

SOLIDWORKS MBD - Model Based Definition to zintegrowane rozwiązanie produkcyjne, które nie wymaga używania rysunków. Wspomaga ono definiowanie, organizowanie i publikowanie ...

Creo Parametric Training Class: Using Annotations to Support Model Based Definition

In this course, gain an understanding of the general concepts behind Model Based Definition (MBD), and why your company is moving toward its implementation. You will learn the 3D Annotation...

ASTC: AMS Model-Based Definition, Verification, Validation Flow

Mario Cavaiuolo, VP of ASIC Turnkey Design Solutions, presents the ASTC approach to AMS model-based definition, verification and validation, with case study examples. Learn more about ASTC...

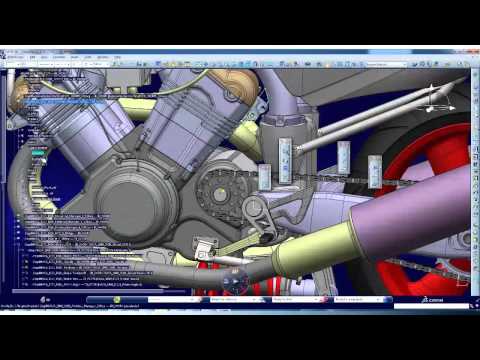

CATIA | Mechanical Engineering | Model-Based Definition Series - Episode2 - DetailedDesign

For this second episode, we will have a look at the tolerancing process of a single part. It is always important to create tolerancing and annotations compliant with the standards chosen by...

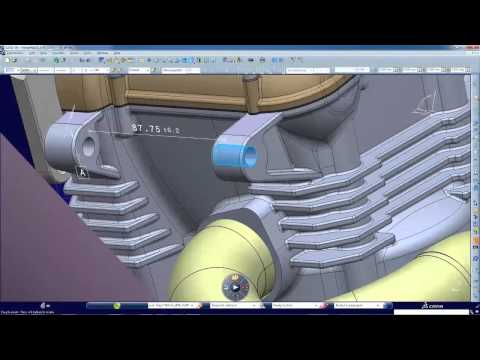

CATIA | Mechanical Engineering | Model-Based Definition Series - Episode3 - Assembly Design
