This article is about controls for motor vehicles. For other uses, see control unit (disambiguation).
An ECU from a Geo Storm.

In automotive electronics, electronic control unit (ECU) is a generic term for any embedded system that controls one or more of the electrical system or subsystems in a motor vehicle.

Types of ECU include Electronic/engine Control Module (ECM), Powertrain Control Module (PCM), Transmission Control Module (TCM), Brake Control Module (BCM or EBCM), Central Control Module (CCM), Central Timing Module (CTM), General Electronic Module (GEM), Body Control Module (BCM), Suspension Control Module (SCM), control unit, or control module. Taken together, these systems are sometimes referred to as the car's computer. (Technically there is no single computer but multiple ones.) Sometimes one assembly incorporates several of the individual control modules (PCM is often both engine and transmission)[1]

Some modern motor vehicles have up to 80 ECUs. Embedded software in ECUs continue to increase in line count, complexity, and sophistication.[2] Managing the increasing complexity and number of ECUs in a vehicle has become a key challenge for original equipment manufacturers (OEMs).

Key elements of an ECU[edit]

  • Core
  • Memory
  • Inputs
    • Supply Voltage
    • Digital inputs
    • Analog inputs
  • Outputs
    • Relay drivers
    • H bridge drivers
    • Injector drivers
    • Logic outputs
  • Communication links
    • Housing

Design and development[edit]

The development of an ECU involves both hardware and software required to perform the functions expected from that particular module. Automotive ECU's are being developed following the V-model.[1] Recently the trend is to dedicate a significant amount of time and effort to develop safe modules by following standards like ISO 26262.[3] It is rare that a module is developed fully from scratch. The design is generally iterative and improvements are made to both the hardware and software. The development of most ECU's are carried out by Tier 1 suppliers based on specifications provided by the OEM.

Testing and validation[edit]

As part of the development cycle, manufacturers perform detailed FMEAs and other failure analyses to catch failure modes that can lead to unsafe conditions or driver annoyance. Extensive testing and validation activities are carried out as part of the Production part approval process to gain confidence of the hardware and software. On-board diagnostics or OBD help provide specific data related to which system or component failed or caused a failure during run time and help perform repairs.

References[edit]

  1. ^ a b National Instruments White Paper on Electronic Control Units
  2. ^ Ebert, Christof; Jones, Capers (2009-04-01). "Embedded Software: Facts, Figures, and Future". IEEE Computer Society Press. Retrieved 2010-09-15.
  3. ^ Case, Lenny (October 2011). "Fast-tracking ECU development". Automotive Industries.

Original courtesy of Wikipedia: http://en.wikipedia.org/wiki/Electronic_control_unit — Please support Wikipedia.
This page uses Creative Commons Licensed content from Wikipedia. A portion of the proceeds from advertising on Digplanet goes to supporting Wikipedia.
369010 videos foundNext >

Electronic Control Unit ECU Training- Automotive Appreciation 5

In this lesson - ECU Electronic Control Unit, OBD On Board Diagnostics, Input sensors - Position, temperature, speed, O2, Lambda, air flow meter. Output ...

ABS Braking System - Electronic Control Unit (ECU)

This video shows the ABS braking system ECU.

Electronic Control Unit - ECU.flv

EFI Engine Mnagement.

Electronic control Unit

More details: http://dantalmaciu.wordpress.com/ http://termoset.wordpress.com/

Engine Control Unit ECU using microcontroller

home made Engine Control Unit ECU using microcontroller. This ECU has following features: 1) Adjustable Idling Speed + Idling Speed Regulation. 2) Cold ...

Engine Control Unit (ECU) Powered by LabVIEW

An exceptional demonstration of dsPIC based Engine Control Unit (ECU) powered by LabVIEW running an Electronic Fuel Injection (EFI) Engine. In local ...

ECU Tuning Technology

The Serial Suite tuning kit consists of everything needed to reprogram the Electronic Control Unit (ECU) found in nearly every car, motorcycle and recreational ...

ECU electronic control unit

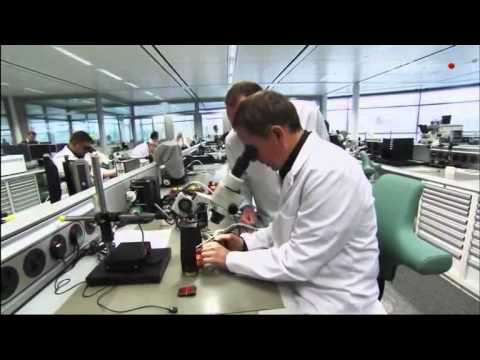

Sky Sports F1: Martin Brundle on McLaren's Electronic Control Unit (ECU)
